Product

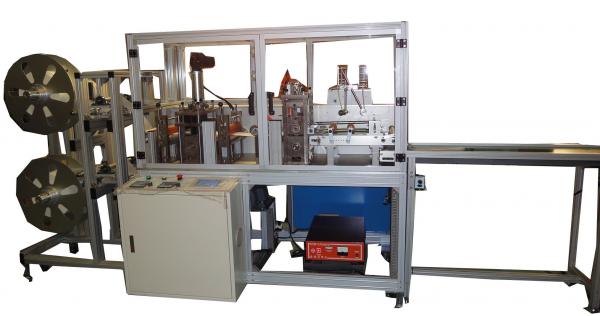

Diamond Spacer Welding Machine

Diamond Spacer Welding Machine
Product ID: SK-155

For making inner "diamond spacer" of rigid filter pocket.
SK-155 Download Now !

Specifications:
 1. Power Source  : 220V/1 Phase/20A
2. Ultrasonic System : 20KHz/1500W x 1 set
3. Working Output  : 1,000pcs/Hour (maximum) for 436mm long
4. Maximum Width : 134mm
5. Air Source : 6kg/cm
²
6. Control Panel  : HMI with Siemens Touch Screen
7. Main Feeding Motor : 220V/3P/1HP x 1 unit
8. Sub Motor  : 220V/1P/40W x 1 unit
9. Main Machine  : 1750 (L) x 800 (W) x 1758 (H) mm
    Feeding Stand : 1250 (L) x 788 (W) x 1700 (H) mm
Features:
Certificate:
  • CE
Profile
Established in:1992
Business Type:Exporter/Agent OEM Manufacturer ODM Manufacturer
Markets: World-Wide
Main Products:Ultrasonic Plastic Welding M/C, Ultrasonic Design Mfg, Automatic M/C, Nonwoven Automatic Machine, Hot Air Seam Sealing Machine, Welding machine, Welding Machinery
No. of Employee:50
Location:Taiwan
