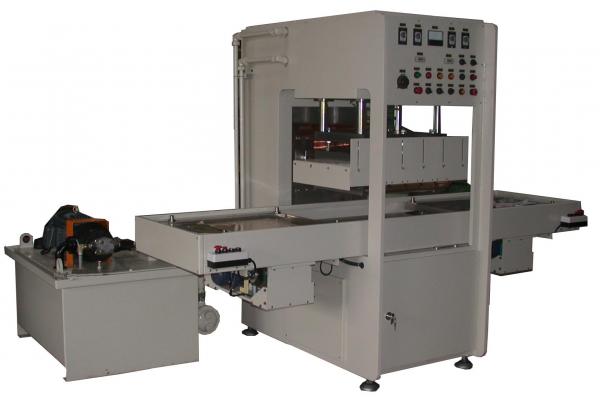

High Frequency Automatic Slidder welding and cutting Machine

High Frequency Automatic Slidder welding and cutting Machine

High Frequency Welding and Cutting Machine

Product ID: SH-804SC/SH-1004SC/SH-1504SC
This shuttle table machine is designed for easier operation and for saving space. New oscillation case design; strong, durable and reliable machine. The shuttle table is easy to operate, and can rotate and position accurately. Electrical pre-heat flat mold base loads/unloads molds promptly and supports easy horizontal adjustment. High-sensitivity ARC suppressor features quick response and high stability.
Download Now !
Specifications:
  • Application:
  • Simultaneous welding and cutting synthetic leather and other multifold products.
  • Simultaneous welding and cutting all kinds of trade reflecting mark & logos.
  • Simultaneous welding and cutting PVC product with cloth.
  • Simultaneous welding and cutting shoes accessories, watch belt, synthetic leather belt...etc.
  • CD cover, small purse, leather mark...etc.



See more complete detail
ItemSH-804SCSH-1004SCSH-1504SC
Max. HF output power 8 KW 10 KW 15 KW
Oscillation frequency 27.12 MHz 27.12 MHz 27.12 MHz
Power source 3P AC220/380/415/440V, 50/60Hz 3P AC220/380/415/440V, 50/60Hz 3P AC220/380/415/440V, 50/60Hz
Input power 16 KVA 20 KVA 30 KVA
ARC suppressor NL-5557 NL-5557 NL-5557
Rectifier Silicon Rectifier Silicon Rectifier Silicon Rectifier
Distance between upper
& lower electrodes		 150mm 150mm 150mm
Press stroke (adjustable) 20~125mm 20~125mm 25~125mm
Dimension of top platen 550 x 700mm 550 x 700mm 600 x 800mm
Max. pressure 2000kgs/cm2 2000kgs/cm2 2500kgs/cm2
Press operation Hydraulic type Hydraulic type Hydraulic type
Order Information:
  • Minimum Order: Negotiable
  • FOB: TAIWAN
