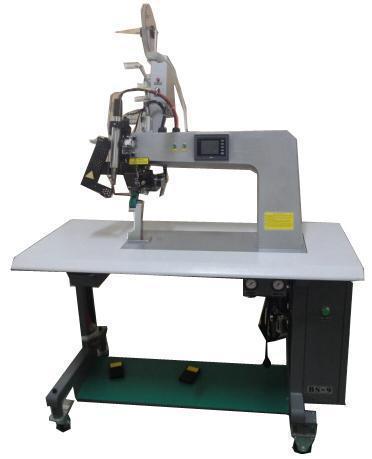

Hot Air Seam Sealing Machine

Hot Air Seam Sealing Machine

Hot Air Seam Sealing Machine

Product ID: SU-850T

Hot Air Seam Sealing Machine
The machine with three stepper motor :  tape feeding/upper wheel/down wheel.
In design:  1, Large soft-touch and multi-fuction display with high definition are chose for clear display of rate,temperature,operations and programming.
2, Sealing speed, temperature and actions controlled by micro-computer, easy to be adjusted.
3, Both the front length and tailed-end of the tape can be adjusted by computer according to customers' requirements.
4, Tail-end of seam sealing tape can be both finished automatically and manual. When the working temperature is set, PLC is under the automatic control, The temperature fluctuation is allowed within+/-1℃, There is an alarming device for ceiling limit for safe and longer use of  the fuse.
5, The exterior heating pipe is cooled by air for less possibility of burning workers and prolonging the life cycle.
6, The tape is loosened, conveyed and cut automatically by the motor for much less consumption of tape tail section and high quality of the products.
7,  Large and strengthened zigzag-rule structure provides efficient and flexible working space.


SUT-850T Download Now !
Features:
  • 1 - Power and Voltage : AC220V,60Hz/50Hz
  • 2 - Rating efficiency : 2800W
  • 3 - Heat control: Max.700 degree C
  • 4-  Nozzle width: standard flat nozzle 24mm.
  • 5 - Pinch roller width: Standard:25mm. (can be modified)
  • 6 - Seam sealing tape width : Standard 14mm~22mm.
  • 7 - Upper roller lift: 18~22mm.
  • 8 - Net Weight : 120kgs
  • 9 - Dimension: 1350(mm) x 730 (mm) x 1900 (mm)
  • 10- Prevebtuib Agaubst Jumping over sewing work: There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting,or when the gun moving outward with the idle wheel stopping.



See more complete detail
Application:
Rainwear/Outerwear,  Active wear (skiing, snowboarding, cycling, sailing, climbing, paddling sports, hiking, hunting/fishing, golfing) Industrial work-wear, Waders, Tents, Military garments & gear, Hazardous Material Protective Suits.
Order Information:
  • Minimum Order: Negotiable
  • FOB: TAIWAN
