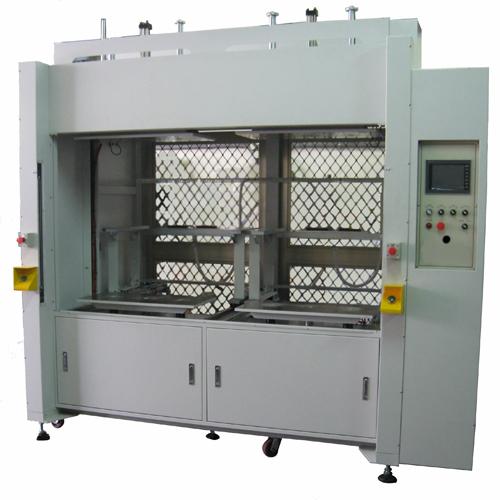

Hot Plate Welding Machine-Twin mould

Hot Plate Welding Machine-Twin mould

Hot Plate Welding Machine-Twin mould

Product ID: SHC-7555-H

Hot plate welding is beneficial to manufacturers seeking to join thermoplastic parts where both high-strength and hermetic seals are required, or where parts have complex geometries, such as irregular shape, or curved or internal walls.
This design is combined two hot plate machine together. Operator can choose to run single mould or two sets mould at the same time.

Specifications:
  • 1 - Hot plate welding machine is used for welding injection-moulded components which made of PE,PP,Nylon,ABS,Acrylic.
  • 2 - Hot plate mould is made by CNC engraving.
  • 3 - Consistent high-pressure hermetic seals.
  • 4 - PLC controlled circuit systems.
  • 5 - Elminates consumables.
  • 6 - Application :batteries, fluid reservoirs, lighters, or other challenging plastics joining applications where cost-effective methods and strong seals are crucial.

Features:

Options Equipment
1. We can make customized machine in Vertical or Horizontal configurations.
2. Customer specified PLC and interface.
3. Light curtain or Safety door.
4. Touch Panel human-machine interface.

See more complete detail
1. Hydraulic moto: 3HP x 2.
2. Max.working space: 750 x 450 x 1050 * 2sets.
3. Max.loading space for mould: 620 x 320 x 250 * 2sets.
4. Machine Size: 2700 x 1860 x 2790.
5. N.W.: 2950kgs. G.W.: 3300kgs.
Order Information:
  • Minimum Order: Negotiable
  • FOB: TAIWAN
